2017 - Water balance and culture development under dynamic photovoltaic panels: from modeling to evaluation of agrivoltaic solutions - Y. Elamri

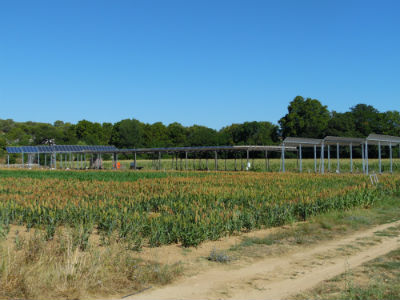

Elamri 0941 web© Elamri Y.: The agrivoltaic devices of  Lavalette experimental platform. On both sides, dynamic devices (inclinations of variable panels) and in the center, devices with fixed inclination.



Agrivoltaism, defined as the association on the same land of agricultural and photovoltaic energy production, appears as an innovating concept to dampen some of the effects of climate change, in the agricultural sector. Although the concept was already imagined in 1982, the first experimentations started in 2010 at Montpellier (France) and showed the relevance of this combination by the maintenance of crop yield under certain conditions, the increase of land use efficiency and a reduction of water consumption for the tested crops. Following this pioneering work done under fixed (but not horizontal) photovoltaic panels, the use of "dynamic" panels, i.e. panels with a variable tilting angle, appears necessary to reduce the spatial heterogeneity of the transmitted radiation but also to adapt the shading strategy to the radiation amount required for crop growth.

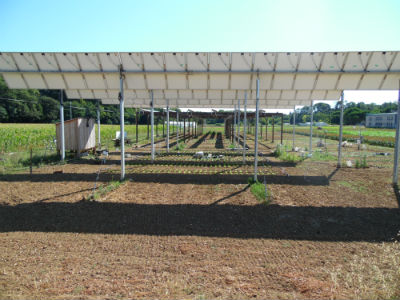

Elamri 0970 web© Elamri Y.: Shading under  Lavalette agrivoltaic devices during experiments conducted on drip irrigated lettuce. In the foreground, shading under dynamic device. In the background, shading under fixed device in semi-density. In the background, shading under fixed full density (corresponding to a conventional photovoltaic power plant raised 4.5m high).



This thesis aims to characterize and to model the impact of the photovoltaic panels on the water budget of the  cultivated plot and to progress towards the optimization of irrigation strategies in such systems controlled by the variations in time of the tilting angle of the panels. Experimentations conduced on lettuces showed the benefits of "dynamic" photovoltaic panels to reduce the radiative heterogeneity.  Accounting for rain redistribution by the solar panels permits the implementation of a real time strategy to reduce rainfall heterogeneity on the ground surface. The derivation of a water budget and crop development model which describes the dynamics of stomatal conductance under fluctuating shading allows a better simulation of water consumption and crop development for different shading strategies. Finally, various strategies for the piloting of the solar panels could be tested and evaluated by a new, global index combining land use efficiency, water productivity, maturity delays and heterogeneities (in rain and radiation) which can impact production.

Additional Info

  • Contact:

    PhD Student: Yassin ELAMRI
    E-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.

  • THESIS INFORMATION:

    PhD Institution: ED 684 SIBAGHE
    PhD Directors: Gilles Belaud (Montpellier SupAgro) et Bruno Cheviron (IRSTEA)
    CIFRE Sun'R Scholarship - FUI Agrivoltaic Project
    Starting Date: 15/01/2015
    Defense Date: 15/12/2017

  • Team(s) of Joint Research Unit concerned:

    OPTMISTE

SHARE
